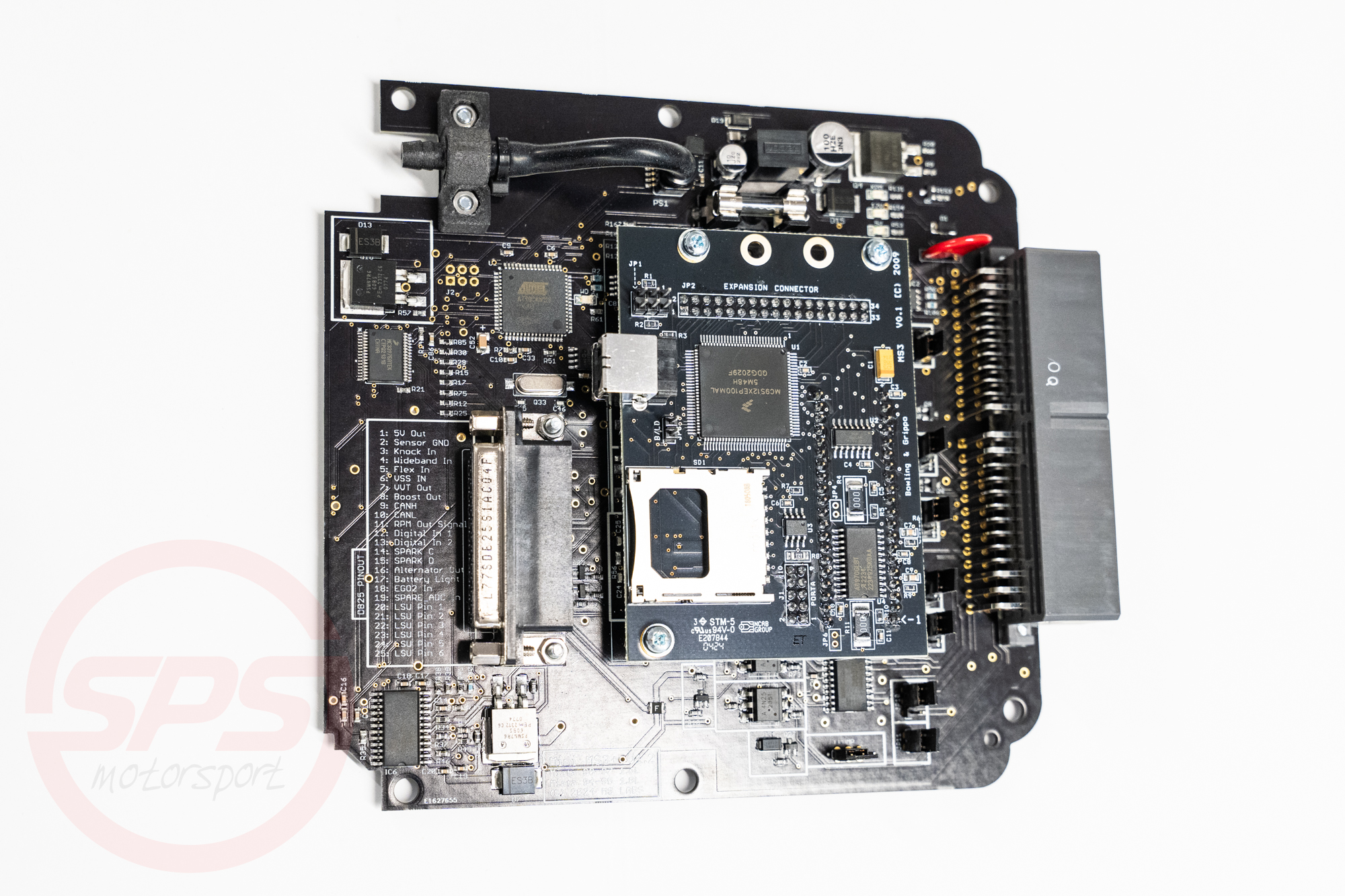

Megasquirt Mini Plus MS3 NA 90-97 94-95 Kit 2 Plugs

€1,124.99*

Prices incl. VAT plus shipping costs

Delivery time 2-6 weeks

Product number: MMS3P90979495

Manufacturer: MS Labs

Product information "Megasquirt Mini Plus MS3 NA 90-97 94-95 Kit 2 Plugs"

We also use some MS3 ECUs in our racing cars and the converted private cars of our employees. In this way, we have many positive experiences with the ECUs, which we can now pass on to you and from which you can benefit. In addition, we were able to convince ourselves that the control units meet our high standards. Aftermarket immobilizers can still be used.

CAUTION!! Before buying, please make sure whether your OEM ECU has 2 or 3 plugs. If this ECU is used on a vehicle with 3 plugs, the control unit will be destroyed!

Hardware features

Plug and Play - fits inside the OEM case
4 injector outputs
4 ignition outputs
* Support R8 coils
High-side and low-side fuel pump control
Onboard wideband lamda controller
New Closed Loop Idle Control
Boost Control output
Knock Sensor Input
2 Hall inputs for crank/cam
3 spare analog inputs
All OEM digital inputs:
* Power Steering Switch
* A/C Switch
* Clutch/Neutral Switch
* Brake Switch
* Headlight Switch
* Blower Switch
2 spare digital inputs
1 spare frequency input (for speed)
Flex Fuel Input
A/C output
Dual fan outputs with indendent temp and RPM activation
CEL output
Alternator control output
Battery Light output
VVT output
RPM output
Barometric Sensor
4bar MAP sensor
SD Card slot for logging
Serial Port for Bluetooth adapter
USB port for PC

Software features

Fuel Tables: 4, 16x16
Ignition Tables: 4, 16x16
AFR tables: 2, 12x12
Boost Tables: 4, 8x8
Boost by Gear: Yes
Traction Control: No.
ALS: No.
Full A / C Support: Yes
P / S Support: No.
Water Injection: Yes
CEL Infrastructure: Yes
Advanced CEL Warning: no
Limp Fashion: Yes
Advanced Engine Protection: No.

For an appointment for installation, please contact us at termin@sps-motorsport.com
