Rear subframe brace Billet-aluminum NA/NB/NBFL
AGR Fabrications s.r.o
Product number:
AGR-1023-NA6-MX5
Product information "Rear subframe brace Billet-aluminum NA/NB/NBFL"
High-Performance Rear Subframe Brace for Mazda MX-5 NA & NB – Engineered for Precision
Precision starts at the foundation.
Our high-performance rear subframe brace significantly increases rear chassis rigidity and enhances overall driving response.
Compatible with:
- Mazda MX-5 NA
- Mazda MX-5 NB
Motorsport-Grade Construction

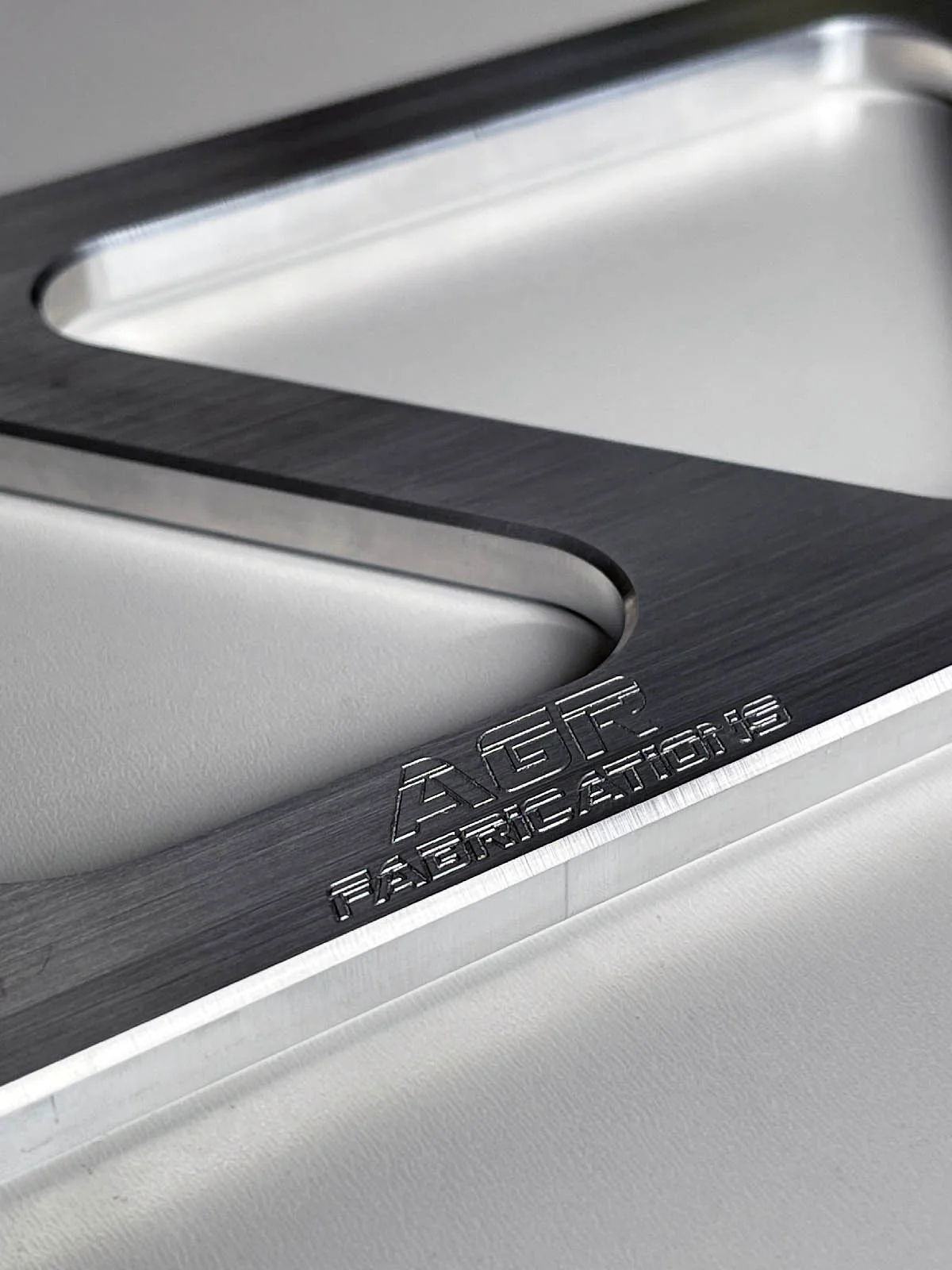

- CNC-machined from 10 mm solid aluminum billet
- 8 mounting points for maximum rigidity
- Wrap-around design securing both sides of the subframe
- Integrated support brace on one side
- Specially engineered reinforcement plates on the other
- Designed for exhaust systems up to 3-inch diameter
The result: reduced chassis flex, improved rear-end stability and sharper handling feedback.
Two Model Variants Available
NA6 / NB Version
- Fits all NA models without factory subframe brace
- Fits NB models with factory brace
- Also compatible with NA models equipped with OEM brace (requires trimming mounting tabs)
- If trimming is not desired, choose the NA8 version
NA8 Version
- Specifically designed for NA models with factory brace
- Requires only minimal manual grinding
- No power tools required
- Optional additional clearance adjustment if desired
Weight
Approx. 1600 g including:
- Brace
- Reinforcement plates
- Spacers

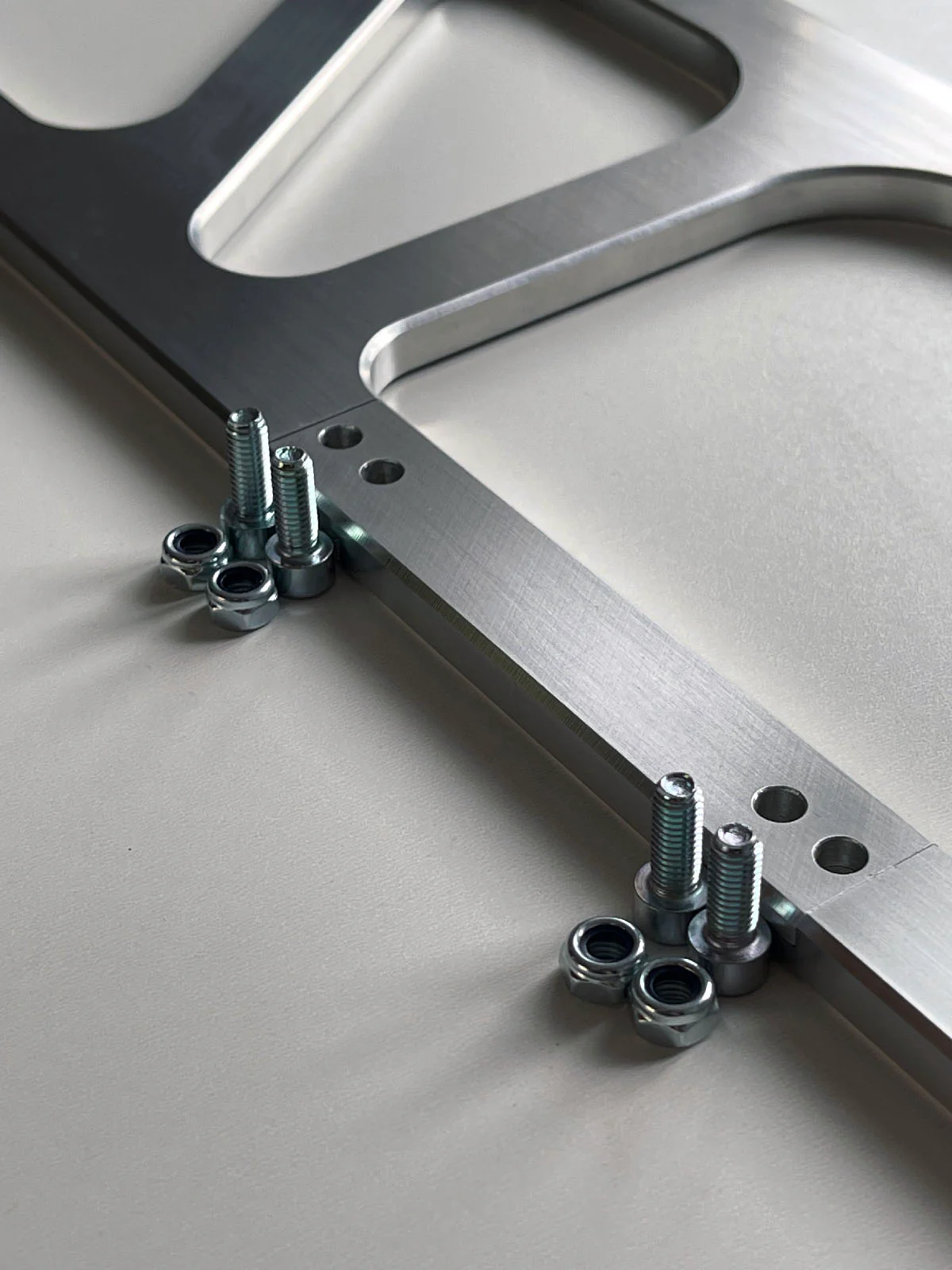

- Complete mounting hardware
