Wheel Spacers System 3B MX-5 NC
SCC Fahrzeugtechnik GmbH
Product number:
14191BWS
Manufacturer:
SCC Fahrzeugtechnik GmbH
Product information "Wheel Spacers System 3B MX-5 NC"

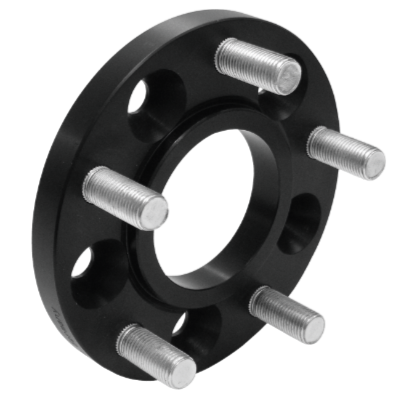

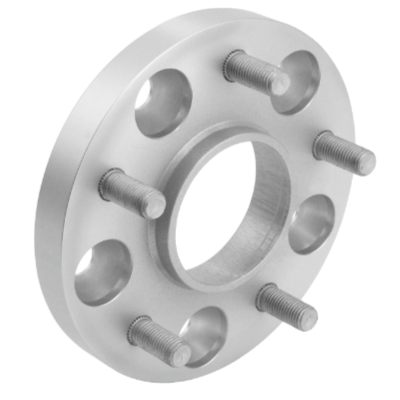

Suitable wheel spacers for your MX-5 NC, available in Uncoated, black, or silver anodized. Delivered in pairs (for one axle).
The dimensions for the bolt pattern are 5x114.3, with a hub centering diameter of 67.1 mm and an M12x1.5 thread for the wheels.
The System 3B ensures optimal driving performance thanks to its dual centering and stud bolts. The spacers can be easily mounted on your MX-5 NC using the included hardware. After installation, the wheels can be attached to the spacer's stud bolts using the original lug nuts.
| MAZDA MODEL: | YEAR: | TYPE: |
|---|---|---|
| 323F, V6 | 1994-2000 | BA* |
| 626 | 1992-1997 | GEA |
| 626 | 1997-2002 | GF, GW |
| 929 | 1987-1991 | HC |
| CX-3 | 2015- | DJ1 |
| CX-30 | 2019- | DM |
| CX-5 | 2011-2016 | KE, GH |
| CX-5 | 2016- | KF |
| CX-60 | 2022- | KH |
| CX-7 | 2006-2012 | ER |
| CX-80 | 2024- | KL |
| CX-9 | 2007-2015 | TB1 |
| CX-9 | 2016- | alle |
| Mazda 3 | 2003-2009 | BK |
| Mazda 3 | 2009-2013 | BL |
| Mazda 3 | 2013-2019 | BM |
| Mazda 3 | 2019- | BP |
| Mazda 5 | 2005-2010 | CR1 |
| Mazda 5 | 2010-2015 | CW |
| Mazda 6 | 2002-2008 | GG, GY, GG1 |
| Mazda 6 | 2008-2012 | GH |
| Mazda 6 | 2013- | GJ |
| MPV | 1996-2006 | LV, LW, LWD |
| MX-30 | 2020- | DR |
| MX5 | 2005-2015 | NC |
| MX6 | 1992-1997 | GE6 |
| Premacy | 1999-2005 | CP |
| RX7 | 1991-2002 | FD |
| RX8 | 2003-2012 | SE |
| Tribute | 2000-2008 | EP, EP2 |
| Xedos 6 | 1992-1999 | CA |
| Xedos 9 | 1993-2002 | TA |
Skip product gallery
Accessory Items
Lugnuts Allen Black
From
€27.32*
A set of 20 black steel lugnuts. Diameter 20mm, length 32mm, thread pitch M12x1,5mm or M12x1,25mm.
The kit also includes the Allen key.
