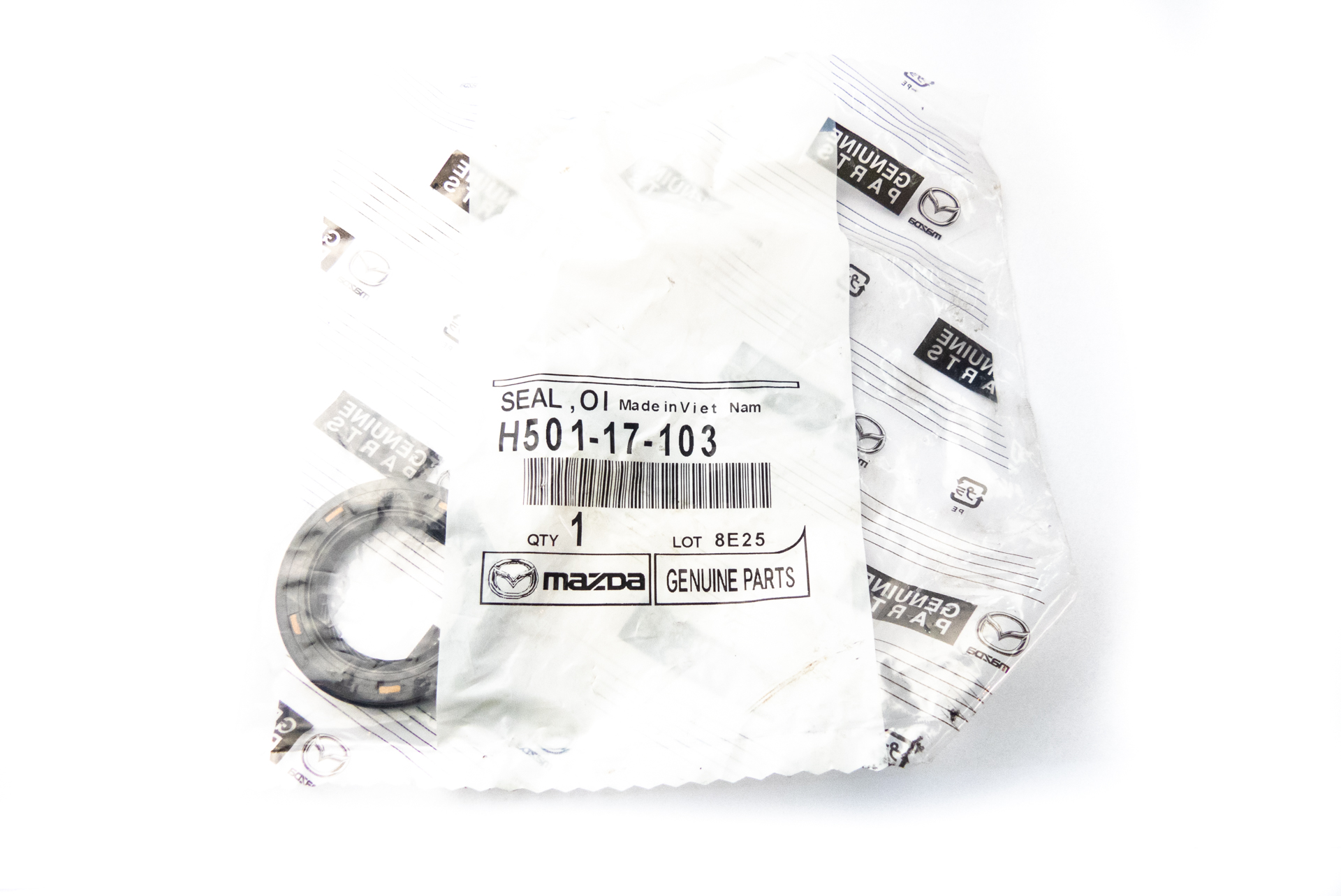

Sealing H501-17-103
Product information "Sealing H501-17-103"

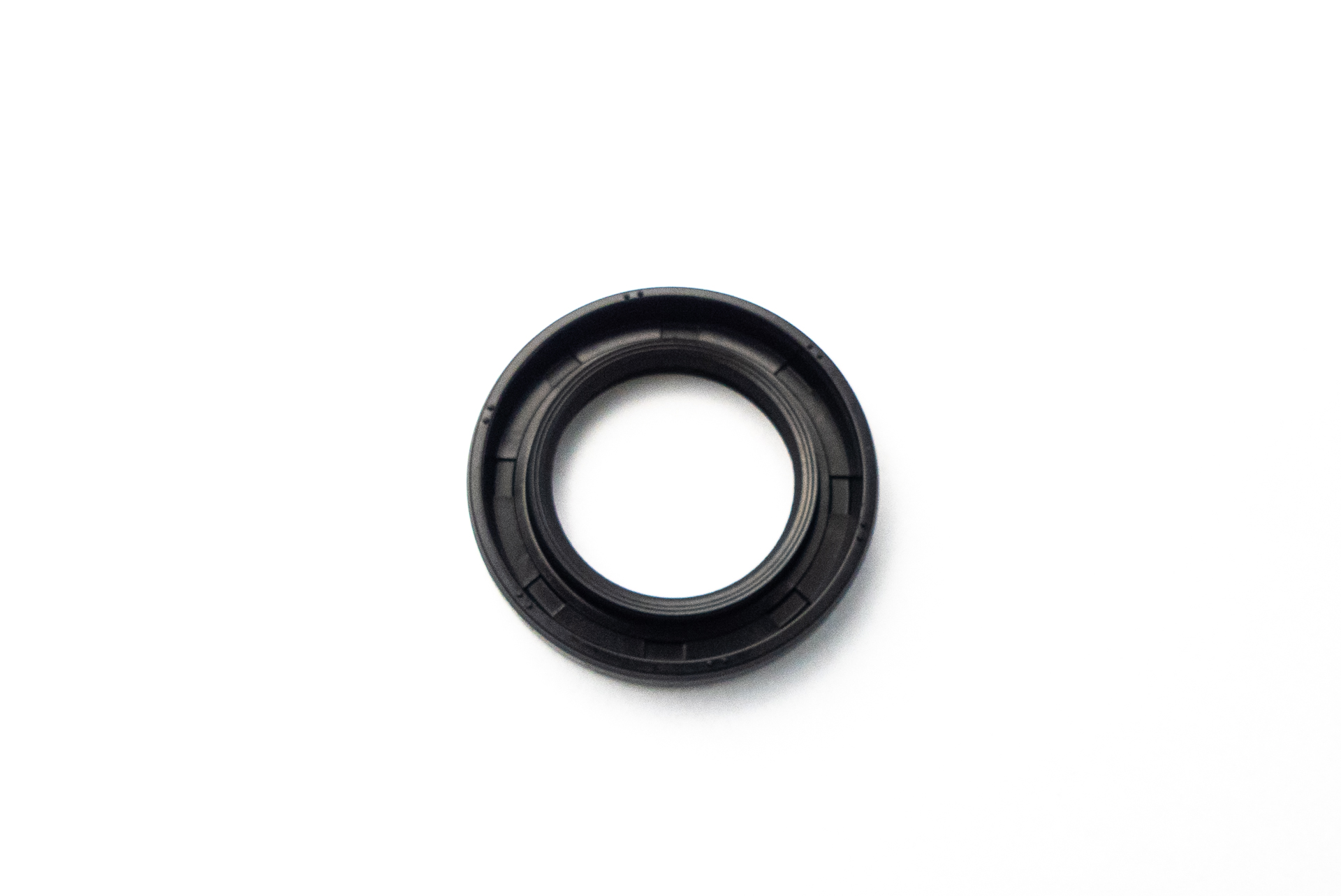

Mazda original oil seal for transmission input shaft for 5-speed gearbox on NA / NB / NBFL and RX-7 FD.
Accessory Items
Mazda
Skip product gallery
Sealing FE50-16-225A
€7.49*
Mazda Original paper sealing for the guide part (cover in front of the input shaft seal) in the gearbox bell at 5-speed NA / NB / NBFL.
Motalin Combisynt 75W-90 GL4/5
€15.90*
Quantity:
1 Liter Can
High-performance gear oil based on high-quality full synthesis and HC synthesis components. Used in conventional manual and axle transmissions. Note:Recommended for the following vehicles / applications: NA / NB / NC / ND manual transmission NA / NB / NC / ND differential road (unlocked)
Oil filling quantities:
Engine:
NA / NB / NBFL 1.6L B6: 3.4LNA / NB / NBFL 1.8L BP: 3.8LNC 1.8L L8 / 2.0L LF: 4.55LND 1.5L / 2.0L: 4.3L
NA-ND with oil cooler: approx. 5L
transmission
NA / NB / NBFL 5-speed / 6-speed: 2.0LNC 5-speed: 2.0LNC 6-speed: 2.1LND 6-speed: 2.0L
differential
NA small diff: 0.65LNA / NB / NBFL large diff: 1.0LNC Diff: 0.7LND Diff: 0.6L
<iframe width="350" height="197" src="https://www.youtube.com/embed/rMCna1ME_Bc" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>
<iframe width="350" height="197" src="https://www.youtube.com/embed/21D53EueMmU" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>
Motalin 85W-140 GL5
€12.90*
Quantity:
1 Liter Can
For heavily used axle drives of all kinds, if API and GL5 are required.
Recommended for the following vehicles / applications:
NA / NB / NC / ND Transmission and Differential racetrack
Oil filling quantities:
Engine:
NA / NB / NBFL 1.6L B6: 3.4LNA / NB / NBFL 1.8L BP: 3.8LNC 1.8L L8 / 2.0L LF: 4.55LND 1.5L / 2.0L: 4.3L
NA-ND with oil cooler: approx. 5L
transmission
NA / NB / NBFL 5-speed / 6-speed: 2.0LNC 5-speed: 2.0LNC 6-speed: 2.1LND 6-speed: 2.0L
differential
NA small diff: 0.65LNA / NB / NBFL large diff: 1.0LNC Diff: 0.7LND Diff: 0.6L
<iframe width="350" height="197" src="https://www.youtube.com/embed/rMCna1ME_Bc" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>
<iframe width="350" height="197" src="https://www.youtube.com/embed/21D53EueMmU" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>
Sealing ring for gearbox and differential oil
€0.54*
Aluminum sealing ring from Würth with the dimensions 18x24x1.5mm. Perfectly suited for drain and filler plugs of the MX-5 NA / NB / NC / ND of the gearbox and differential. Please note that the NA oil filler plug is also available as a conical seal screw, which does not require a sealing ring. We also use these sealing rings on engine oil drain plugs with a shaft cone (some MX-5 NA). Leakage of the oil can also be prevented here by inserting this sealing ring. Perfect for planned inspections or the like, for which you can also find oil filters, oils and much more in our shop.
Sealingring crankshaft rear
€84.99*
Sealingring for sealing the crankshaft in the direction of the coupling.For an appointment for installation, please contact us at termin@sps-motorsport.com
Fits the following vehicles:
MX-5 NA 1.6L
MX-5 NA 1.8L
MX-5 NB 1.6L
MX-5 NB 1.8L
MX-5 NBFL 1.6L
MX-5 NBFL 1.8L
Mazda 2 DY
Mazda 323 BG (all petrol engines)
Sealingring crankshaft / oil pump front
€25.99*
Sealingring for sealing the crankshaft in the direction of the belt drive.For an appointment for installation, please contact us at termin@sps-motorsport.com
Reinforced 5 speed gearbox MX-5 NA
€4,600.00*
This custom-designed 5-speed
gearbox for the MX-5 NA is the perfect solution for those seeking extreme
performance and reliability. Featuring a range of high-quality reinforcements
and enhancements, this gearbox guarantees superior stability and durability
under the most demanding conditions.
Technical Details and
Reinforcements
• Mazda RX-8 Internals:
Adopting the robust components of the RX-8 ensures improved material quality
and durability.
• Reinforced 3rd and 4th
Gears: Specially reinforced gears in 3rd and 4th gears offer increased strength
and reduced wear, even under heavy use.
• Reinforced Main Shaft: A
reinforced main shaft provides added stability and minimizes the risk of
breakage or deformation under high torque.
Performance
This reinforced gearbox is
designed to handle an impressive 400 Nm of torque and up to 350 hp. Whether on
the road or the track, it delivers outstanding performance and reliability.
The gearbox is sold on an exchange basis, so we
need your old gearbox!
Reinforced 5 speed gearbox MX-5 NB/NBFL
€4,600.00*
This custom-designed 5-speed
gearbox for the MX-5 NA is the perfect solution for those seeking extreme
performance and reliability. Featuring a range of high-quality reinforcements
and enhancements, this gearbox guarantees superior stability and durability
under the most demanding conditions.
Technical Details and
Reinforcements
• Mazda RX-8 Internals:
Adopting the robust components of the RX-8 ensures improved material quality
and durability.
• Reinforced 3rd and 4th
Gears: Specially reinforced gears in 3rd and 4th gears offer increased strength
and reduced wear, even under heavy use.
• Reinforced Main Shaft: A
reinforced main shaft provides added stability and minimizes the risk of
breakage or deformation under high torque.
Performance
This reinforced gearbox is
designed to handle an impressive 400 Nm of torque and up to 350 hp. Whether on
the road or the track, it delivers outstanding performance and reliability.
The gearbox is sold on an exchange basis, so we
need your old gearbox!
SPS Performance 6 speed gearbox
€4,600.00*
Vehicle:
NA/NB/NBFL 6 Gang
This bespoke 6-speed gearbox for the MX-5 is the perfect solution for those looking for extreme performance and reliability. With a range of high-calibre reinforcements and improvements, this gearbox guarantees superior stability and durability in the most demanding conditions.
Technical details and reinforcements
Mazda RX-8 innards: Adopting the robust components of the RX-8 guarantees improved material quality and durability.
Reinforced 3rd and 4th gears: Specially reinforced gears in 3rd and 4th gears offer increased load-bearing capacity and reduced wear, even under heavy loads.
Reinforced main shaft: A reinforced main shaft provides additional stability and minimises the risk of breakage or deformation under high torque.
Performance
This reinforced gearbox has been developed to effortlessly handle an impressive 445 Nm of torque and up to 380 hp. Whether on the road or the track, it offers outstanding performance and reliability.
Gearbox is sold in exchange, so we need your old gearbox!
Power (PS)Torque (NM)Recommendation
Up to 250
270
5-speed gearbox (for better durability and improved gear engagement, a 6-speed gearbox is recommended)
Up to 280
320
6-speed gearbox – the balanced option
Up to 330
380
6-speed gearbox with SPS Motorsport Transmission Oil Cooling Kit
Up to 380
445
SPS Performance 6-speed gearbox with SPS Motorsport Transmission Oil Cooling Kit
Over 380
Over 445
BMW transmission conversion kit
