Jenvey ITB kit T45 MX-5 NB 1.8

Single Registration at SPS

€4,250.00*

Prices incl. VAT plus shipping costs

Delivery time 2-6 weeks

ECU

Basic MS3 NB 99-00

Mini MS3 NB 99-00

Reroute

Installed with Skidnation Reroute

No Reroute (OEM water system)

Product number: EKIT-NB-18-MMS39900-NORR

Manufacturer: Jenvey

Product information "Jenvey ITB kit T45 MX-5 NB 1.8"

You like carburetors, you love DTM cars from the 90's. Then that's just the right product.
From the racetrack to the road, the ultimate performance upgrade for your Mazda MX-5 from the natural aspirated section. In 2014 we developed a ITB system for the Mazda MX5 NA, NB and NBFL with Jenvey from England.
We recommend such a system as a "Last Step". The following modifications should already be carried out or they should be rebuilt in the same step:
- Camshafts

- Exhaust System including SPS Exhaust Manifold Kit

The resulting additional power depends on the already installed or combined products. With the already linked products, a power of 160 hp is possible.
We are happy to put together the right package for your 1.8 liter.
The kit comes complete including matching basemap. The kit does not fit for vehicles with air conditioning.

Engine control unit
We recommend an MS3 Mini for street use, for a vehicle that is to be moved on the race track we recommend a Basic MS3. Aftermarket immobilizers can still be used.

Support
All ITB systems distributed by us receive lifelong support. Since we drive and use the products ourselves, as well as on the racetrack, we can help with almost any problem. You have questions, ask us!X

TÜV registration
CAUTION! The ITB-Kit can only be TÜV registered in combination with an our exhaust manifold incl. catalytic converter and an OEM exhaust system or our Group A exhaust system! Combinations with other exhaust systems were not taken into account and may not be possible to register. If in doubt, it is best to contact us directly by email to ensure that the registration is possible.

Components
Jenvey single throttle system incl. Mounting material
SPS airbox including intake
SPS idle control valve kit
SPS Catch Can kit
Halfsize radiator to use the SPS intake
Jenvey intake manifold
Jenvey throttle potentiometer
SPS Motorsport injectors suitable for Mazda MX5 1.8 liter
Engine control unit with basemap
mounting material (incl. spark plugs BKR7EIX and modified washer fluid reservoir)

ATTENTION! If you choose "Installed with Skidnation Reroute", the reroute kit is not included in the scope of delivery and must be ordered separately!

For safe use we recommend the following components:

- Wideband Lambda
- Oilcooler
- Flywheel and Clutch

For correct adjustment of the camshafts we also recommend adjustable Cam Gears

For an appointment for installation, please contact us at termin@sps-motorsport.com

According to empirical values, registration amounts to approximately € 500, and the tuning amounts to approximately € 1000. Please ask for installation costs via the inquiry form.

Accessory Items

Camshaft set NB 1.8 naturally aspirated Stage 2

Camshafts suitable for 1.8 NB engines, which are to be operated as naturally aspirated engines. Ideal for engines with individual throttle body system and standalone ECU. The kit contains the camshafts, as well as the matching valve springs. Rough idling may occur. These camshafts are part of the complete engine 1.8 NB naturally aspirated stage 2 and the engine parts package NB 1.8 naturally aspirated stage 2. There is a possibility of the camshafts touching the cylinder head during rotation. Before the final installation, it is essential to check that the camshaft has a clearance of at least 0.6mm to the cylinder head at every point. Otherwise severe damage to the camshaft and the cylinder head can occur. CAUTION! Adjustable camshaft gears are not suitable on this engine, because the engine uses the OEM camshaft gear for rpm pickup. For use of the adjustable camshaft gear we recommend to use our 36-2 crankshaft triggerwheel in combination of a standalone ECU. In order to keep the price attractive, we work with reground camshafts. Accordingly, we need your original camshafts back. Basic camshaft diameter is 33mm. <iframe width="560" height="315" src="https://www.youtube.com/embed/PMBKztJTG2I" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>

€1,099.00*

Xtreme Clutch Clutchkit 1,8 NA/NB/NBFL

Clutch kit suitable for 1.8 NA / NB / NBFL with performance increase. The clutches are designed in 3 stages to make it easier for you to choose the right clutch for your vehicle. The different stages are intended for the following uses: Stage 1: Organic clutch disc with reinforced pressure plate for use in turbo conversions on stock engines (up to 250hp) and all types of natural aspired engines, not suitable for race use on slicks Stage 2: Multi segment ceramic clutch disc with reinforced pressure plate for use in turbo conversions with forged engines up to 1.3 bar boost pressure (350 hp). Clutch engagement is more agressive and ruff. Stage 3: ceramic clutch disc in racing configuration with extra reinforced pressure plate for use in turbo conversions with forged engines above 1.3 bar boost pressure (up to 390 hp). Clutch engagement is more agressive and ruff. The scope of delivery includes: clutch disc pressure plate release bearing pilot bearing Centering mandrel for centering the clutch

From €374.99*

Details

Xtreme Flywheel 1,8 NA/NB/NBFL

Flywheel from Xtreme Clutch suitable for 1.8 liter MX-5 NA / NB / NBFL. Available in CroMo steel 4.86kg or 6,14kg.

From €621.78*

Details

SPS Motorsport Group A exhaust system NB / NBFL

The Group A exhaust system from SPS Motorsport replaces the original rear silencer and front silencer. The outer diameter of the pipe guide is usually 63.5mm. The systems are constructed according to the absorption principle, that is, lead sieve tubes through the silencer. This results in a lower exhaust back pressure and thus an increase in power and torque.Compared to the standard system creates a duller and more powerful sound. On request, we can also produce exhaust systems with tips that differ from the tips shown above. The tips above are just our recommendations.The mounting material usually consists of clamps and corresponding adapters, if they are necessary for installation.Year 1999 - 20051.6l 16V 81kW / 1.9l 16V 102/103 / 107kWstainless steelwith EC operating permitFor an appointment for installation, please contact us at termin@sps-motorsport.com

€1,114.27*

Details

Tip

Mit TÜV Teilegutachten

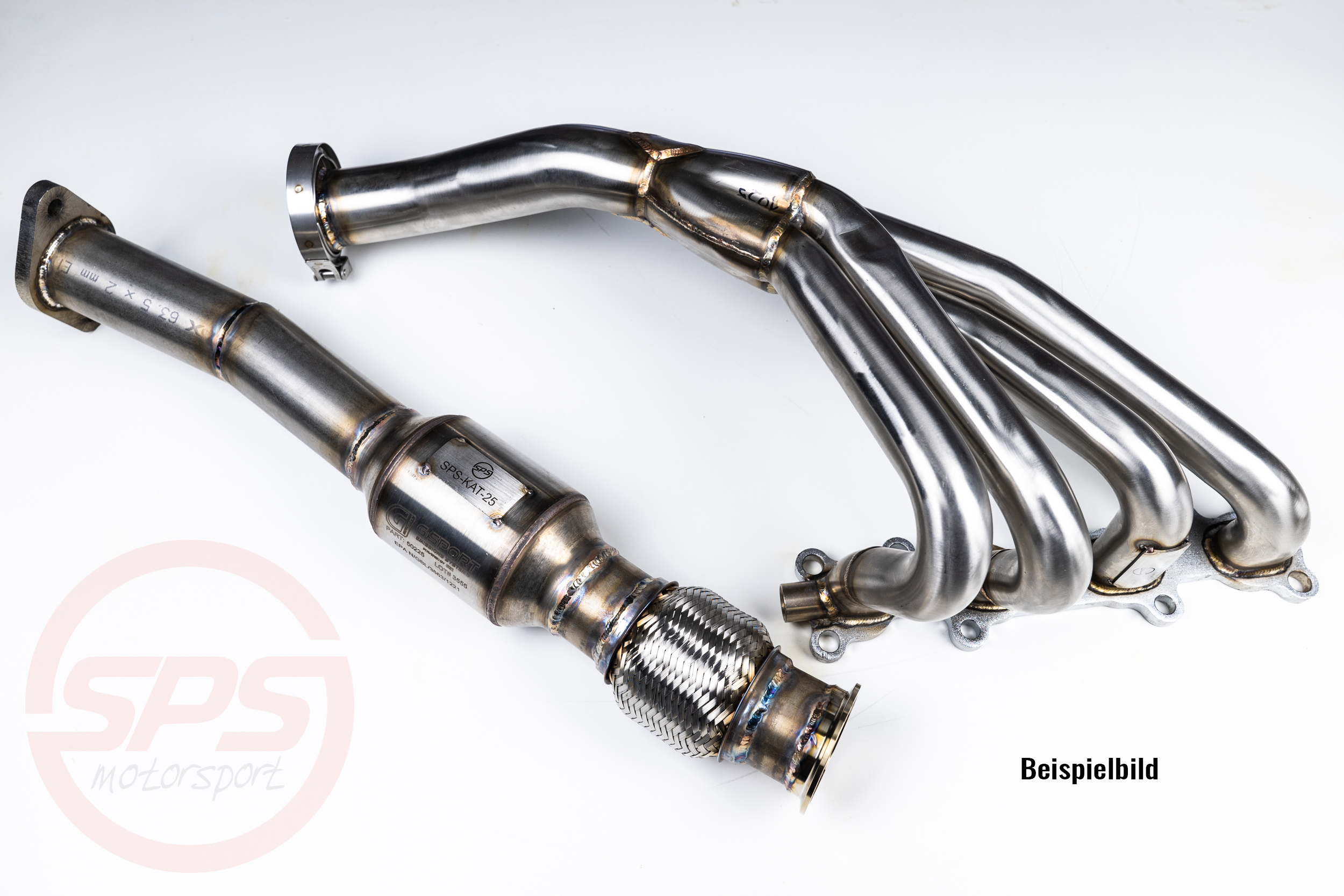

Exhaust manifold incl. catalytic converter MX-5 1.8L NB

We finally have our own manifolds! You get a complete manifold kit including catalytic converter suitable for the 1.8L MX-5 NB. The kit can be registered with any TÜV inspector with our appropriate parts certificate. So you get a completely legal solution to give your exhaust system the finishing touch! The parts certificate also covers our exhaust manifold with catalytic converter in combination with the SPS Motorsport Group A exhaust system. A separate test including noise measurement during TÜV registration is required for use with other exhaust systems. The manifold & catalytic converter combination is directly suitable for your OEM or Friedrich Motorsport cat-back exhaust system. With this kit you get the following components: Exhaust Manifold suitable for MX-5 NB 1.8L Specially adapted catalytic converter pipe with catalytic converter Heat protection tape for winding the manifold (please so that the welded label is still legible) 10x metal cable ties to attach the heat protection tape to the manifold 1x exhaust manifold gasket 1x gasket suitable for the lower exhaust flange in the direction of the exhaust system 9x copper nuts M10x1.25 (for mounting the manifold on the engine) Mounting material for connecting the lower exhaust flange towards the exhaust system TÜV parts certificate Depending on the OEM positioning of the window washer tank, it may happen that the original window washer tank can no longer be used. For this we recommend the window washer tank of the Suzuki Cappuchino, which you can find under "add additional parts".

€1,599.99*

SPS Heater Hoses Set 1.8L MX-5 NB

This high-quality heater hose set has been specially developed for the Mazda MX-5 NA/NB/NBFL. It includes all the necessary hoses to connect the cooling system to the heat exchanger in the interior and thus ensure the heating function of the vehicle. Features: Precision fit: The hoses are precisely tailored to the dimensions of the Mazda MX-5 NA/NB/NBFL and ensure a perfect fit. Material: Made from durable and heat-resistant silicone to withstand the high temperatures and pressure conditions in the cooling system. Complete set: Contains all the necessary hoses for the replacement, including inlet and outlet lines. Easy installation: Can be installed with basic tools and no special knowledge is required.

€34.99*

SPS Motorsport Adjustable camshaft belt pulleys NA NB

Adjustable camshaft belt pulleys for Mazda MX-5 NA and NB Take the performance of your Mazda MX-5 NA or NB to the next level with our adjustable camshaft belt pulleys. This precision-manufactured component allows you to optimally adjust the camshaft timing and thus exploit the full potential of your engine. Product details: Precise adjustability: Finely tuned adjustment options give you the flexibility to adjust the camshaft timing exactly to your needs. High-quality material: Made from robust and durable aluminum that is both lightweight and resistant to high temperatures and stress. Performance increase: Enables the optimization of engine performance across the entire speed range, especially in conjunction with other modifications. Easy installation: Perfect fit for the Mazda MX-5 NA and NB models, can be installed using the existing mounting points and tools. Improved engine control: By precisely controlling the camshaft timing, better combustion efficiency and thus higher power and torque can be achieved. Additional information: Compatibility: Designed specifically for Mazda MX-5 NA and NB models. Weight and color: Lightweight construction, anodized in black, without compromising on strength. Application areas: Ideal for motorsport, tuning or simply for improved road performance. With our adjustable camshaft belt pulleys you can get the maximum performance out of your Mazda MX-5, whether on the road or on the race track.

From €127.50*

Details

SPS Motorsport oil cooler kit NA / NB / NBFL BP

Oil cooler kit with integrated in the adapter plate thermostat from SPS Motorsport suitable for BP engines. It's the oil cooler kit that we trust in our racing cars and our converted private cars. We have extensively tested it on the racetrack and on the road. CAUTION! DOES NOT FIT PLUG AND PLAY FOR VEHICLES WITH AIR CONDITIONING! Therefore you have to modify the brackets of the AC linings. Scope of delivery includes:oil coolerOil cooler holder for attachment to the screw connection of the steering gearOil cooler hosesSandwich plate with outlets to the oil cooler hoses and integrated thermostat (The thermostat opens at 74 ° C and reaches its full opening at 80 ° C) <iframe width="350" height="197" src="https://www.youtube.com/embed/Ad7tpfhdPwU" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>For an appointment for installation, please contact us at termin@sps-motorsport.com

€449.99*
